Introduction:

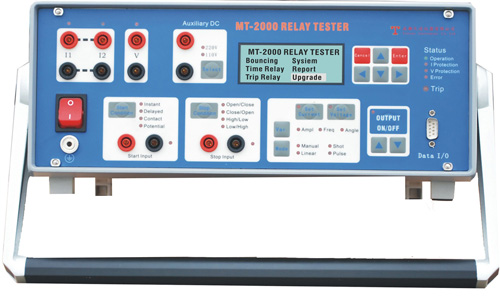

Portable single phase dual current manual and automatic relay test set.
Readymade test modules. Independent control of Phase angle, frequency and amplitude.

 PC control with MTWIN software. Can test differential, df/dt relays too.
Hardware configuration:
2 X 30 A or 2 X 60A, 1 X 150 V independent and isolated generators. Aux dc 110V/220V.

One start input, one stop intput.
Product specifications:
Current generators
Setting range : 2 x 0-30A(or 2 x 60A) AC

Power : 2 x 250VA(or 2 x 400VA for 2 x60A version) max
Resolution: 1 mA (2 mA for 60A version)

Error: 0.2% of setting value or 0.04% of range whichever is higher
Distortion : ≤0.5%
Voltage generator:
Setting range:  1 x 0-150V ac or 1 x ±212 V dc
Power : 50 VA max or 80 W max
Resolution: 5 mV
Error: 0.2% of setting value or 0.04% of range whichever is higher
Distortion: ≤0.5%
Aux dc output: Fixed 220V/110V/Off
Power: 80 W max
Binary inputs:
Start input : 1 no
Trigger mode: Instant/ delayed/ dry contact/ wet contact
Stop input :  1no :
Trig mode  : NO-NC/NC-NO/Hi-Lo/Lo-Hi
Resolution: 50 micro sec
Max measuring time: 419 s
Trigger range 24-V -250V dc
Frequency:
Range: DC-1 KHZ
Resolution: 0.001 Hz
Accuracy: 0.01%
Phase angle
Range: 0-360 deg
Resolution: 0.05 deg
Accuracy: 0.2 deg
Interface:
PC- DATA TRANSFER :RS 232 Front side
PC CONTROL: RS232 rear side
Ground socket: 4 mm banana socket.
General

National standard: DL/T624-1997
Supply voltage: 110 V ac- 265 ac
Supply frequency; 45-65 Hz
Operating temperature: 5- 50 deg
Humidity: 95% non condensing
Weight: 8.5 kg
Dimensions: 470x 150x 263 mm
